Selecting the right solar panel for a specific space can be challenging. Although most people just compare wattage ratings, solar panels’ dimensions also play a critical role in designing the most efficient system.
Standard dimensions of commercial solar Panels
Most commercial solar panel’s sizes and wattage are standardised.
Common length, width and thickness measurements
Most commercial solar panels today are rectangular modules measuring from 195 to 230 cm in length and from 99 to 113.5 cm in width. Thickness, including the aluminum frame, usually ranges from 3 to 4 cm.
These measurements match with racking standards and transport logistics, in compliance with IEC 61215 and IEC 61730 design standards.
Differences between residential and commercial panel sizes
Residential installations often use 60-cell or 120 half-cut cell modules (typically around 165 × 99 cm) for easier manual handling and to fit smaller roof geometries.
In contrast, commercial installations are usually composed of 72-cell, 96-cell, or 144 half-cut cell panels. In addition to being larger, these panels produce more power per module.
How panel size affects installation and mounting
With large panels, the installation is faster and easier because it requires fewer rails and electrical connections. This reduces the Balance of system (BOS) costs.
However, panels weighing between 25 and 35 kilograms may require specific mounting structures in order to be able to withstand wind loads and snow loads.
Commercial solar panel sizes and power output
Commercial solar panel sizes and power output often differ from domestic installations, depending on their particular needs and features.
Typical wattage ranges: 400W to 600W+
Under Standard Test Conditions (STC), most commercial modules are between 400W and 600W. Modern ultra-high-power modules can even exceed 650W.
These larger wattage ratings are a result of increased cell efficiency and number of cells.
Power density per square meter
Power density is expressed as watts per square meter (W/m²). It provides valuable information to optimize energy production in limited space projects.
Efficiency vs physical size: What matters most
Although bigger panels are often capable of producing more energy, a larger size does not imply higher quality solar panels.
It is not their size but their efficiency that determines how much sunlight is converted into electricity.
For small rooftops or those with limited space, smaller high-efficiency monocrystalline panels can be more adequate than a larger, less efficient polycrystalline module.
Understanding solar panel dimensions by cell type
Taking this information into account, it is essential to understand solar panel dimensions by cell type.

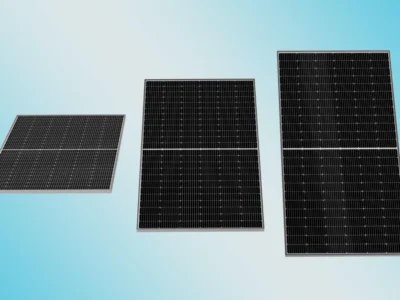

72-cell vs 96-cell vs 144 half-cut cell panels
- 72-cell panels are around 2×1 m are widely used in commercial solar panel systems.
- 96-cell panels measures are usually 220×105 cm. They provide a higher wattage but are heavier and bulkier.
- 144 half-cut cell panels have a similar footprint to 72-cell panels, but with a reduced resistive loss and better shade tolerance.
Monocrystalline vs polycrystalline panel size trends
Monocrystalline silicon cells provide higher efficiency within a restrained size. This means fewer panels are able to generate the same output, which reduces the upfront expense.
Polycrystalline modules are less efficient, so they require more surface area for an equal capacity.
Impact of cell layout on overall dimensions
In addition to size and cell type, modern advances like bifacial technology, glass-glass construction, and half-cut cell arrangements allow to optimise efficiency, weight resistance and compatibility.
Factors that influence solar panel size in commercial projects
Commercial solar installations have their own particularities when it comes to sizing, and several factors might condition the best choice.
Rooftop vs ground-mounted installations
In rooftop systems, panel sizing must be balanced with the building’s structural load capacity, while ground-mounted systems can withstand larger heavier panels.
Orientation, tilt and shading considerations
Panel height impacts row spacing in ground installations. Taller panels may increase self-shading during winter at high latitudes, affecting the Performance Ratio (PR) of the solar plant.
Weight, wind load, and transport logistics
Big and heavy solar panels require special logistics, related to transport and installation.
Choosing the Right Panel Size for Your Commercial Needs
So, how to choose the right panel size for your commercial needs? You will need experts to ensure your installation is safe and efficient. Our team studies your site to choose the right solar panel size, considering the following characteristics:
Balancing Wattage, Efficiency and Available Space
In space-constrained rooftops, it is better to prioritise efficiency over size. In large solar farms, slightly less efficient but larger panels can be more cost-effective.
When to Choose Larger Panels vs Compact Designs
Larger panels are best for uniform surfaces, but compact panels are better to create complex efficient layouts.
Recommendations Based on Building Type
So, depending on the building type, we usually choose different modules.
- In industrial rooftops, 44 half-cut monocrystalline panels, especially when space is restricted.
- For parking canopies large bifacial modules might improve efficiency by benefiting from reflected light.
- Agrivoltaic fields offer wide possibilities, depending on the surface area available and location.
Nevertheless, each case is different, so we match panel dimensions to your project’s layout and needs.
